Save Time & Money

Waste Water Treatment Systems

Choose The Best System

Optimize your operations with the right wash water treatment system. Benefit from lower discharge expenses, water savings, and a smaller environmental impact. Explore the diverse treatment systems presented here, each offering unique advantages. However, the optimal solution depends on your specific wastewater and operational needs. Contact us for expert, personalized guidance in selecting the most effective wash water treatment for your business.

Browse Systems

Talk to an Expert

Types of Systems

Biological Water Treatment Systems

These systems utilize microorganisms (bacteria, fungi, etc.) to break down organic pollutants in wastewater. They are particularly effective in treating water contaminated with biodegradable materials like fats, oils, grease (FOG), and certain chemicals found in industrial cleaning effluents. These systems often involve stages like primary sedimentation, biological reactors (e.g., activated sludge, trickling filters), and secondary clarification.

High-Volume Cannon Water Treatment Systems

This category likely refers to systems designed to treat large quantities of water rapidly, often for applications where high flow rates are essential, such as vehicle fleets or large industrial equipment cleaning. These systems might incorporate various technologies like high-capacity filtration, UV disinfection, or chemical treatment to handle the volume efficiently. The “cannon” aspect might refer to the high-pressure delivery of treated water or a specific component within the treatment process.

Oil/Water Separators

These systems are specifically designed to separate oil and grease from wastewater. They work based on the difference in density between oil and water, allowing oil to float to the surface where it can be skimmed off. Various designs exist, including gravity separators, coalescing plate separators, and dissolved air flotation (DAF) systems for more complex emulsions.

Pit Systems (Sump Systems)

These systems typically involve a collection pit or sump where wastewater from cleaning operations accumulates. From the pit, the water can be pumped through various treatment stages. The pit itself can act as a primary sedimentation basin, allowing heavier solids to settle out. Subsequent treatment might include filtration, chemical treatment, or discharge to a more comprehensive wastewater treatment plant.

Portable Water Treatment Systems

These are self-contained, mobile water treatment units that can be easily transported to different job sites. They often incorporate various filtration stages, and sometimes chemical treatment or other technologies, depending on the application.

Recycle Systems (Water Reclaim Systems)

These systems are designed to capture wastewater from the cleaning process, treat it to remove contaminants, and then reuse the treated water for subsequent cleaning tasks. They typically involve multiple stages of filtration, separation (e.g., oil/water separators), and sometimes disinfection.

Still have questions?

Contact us today for a personalized consultation to determine the most effective and efficient wash water treatment solution for your business.

GET HELP

Clean Vehicles & Heavy Equipment

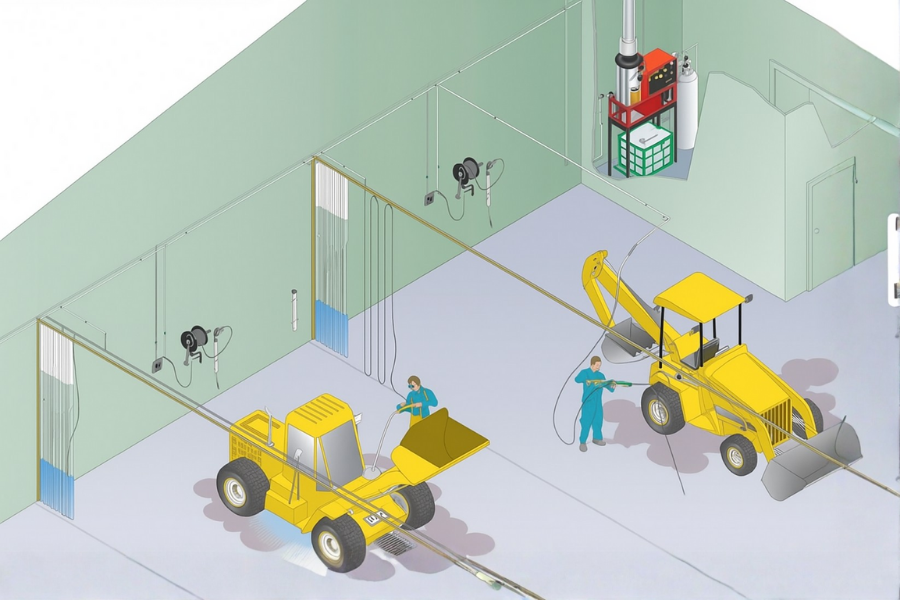

Example Wash Bay System

If you operate a fleet of trucks or other heavy equipment that you clean often, installing a wash bay system can save you hours of man power.

This complete washing system includes the pressure washer of your choice located remotely in your facility, with a trolley system of hoses and wands, allowing multiple users at one time. It is easier to maintain than a stand-alone pressure washer.

Our systems are customized to fit your specific cleaning needs. The result is faster, more efficient cleaning.

Gun Systems

Close

Gun Systems

By splitting the water volume of one pressure washer to several gun and hose locations in the Wash Bay, it allows more than one user to clean at the same time, all at maximum pressure.

Undercarriage Nozzles

Close

Undercarriage Nozzles

Undercarriage nozzles reach under the vehicle to clean without having to get on your hands and knees.

Pressure Washer

Close

Pressure Washer

Stationary pressure washers which run on natural gas or LP gas are the pressure washer of choice in wash bays. This means that no refueling is required, as the fuel source is piped in

Hose Reels

Close

Hose Reels

Hose Reels, trolley kits (5A) and swivel hose booms (5B) lift the hoses off the ground and out of grease and oil, which prevents damage by accidentally running over them. Also allows the hose to be easily maneuvered around the vehicle you are cleaning.

Piping

Close

Piping

High pressure stainless steel piping to the reel drops.

Floor Gate

Close

Floor Gate

Floor grate sends waster water into an oil water separator.

Chemical Tanks

Close

Chemical Tanks

Chemical tanks available with remote monitored chemical level. Chemical ranging from light cleaning all to heavy degreasers.

High Pressure Wand

Close

High Pressure Wand

High pressure VP wand options providing direct chemical application with full pressure control provide the ability to lower pressure as low as 500 psi.

Trolly System

Close

Trolly System

Trolly sliding hose option keeping the hose off the floor preventing damage and tripping hazards.

Remote Control

Close

Remote Control

Remote with pressure, heat and chemical control.

Contact a Water Treatment Expert

Consult our experienced team for expert advice and tailored recommendations to ensure you invest in the most appropriate and cost-effective solution.
