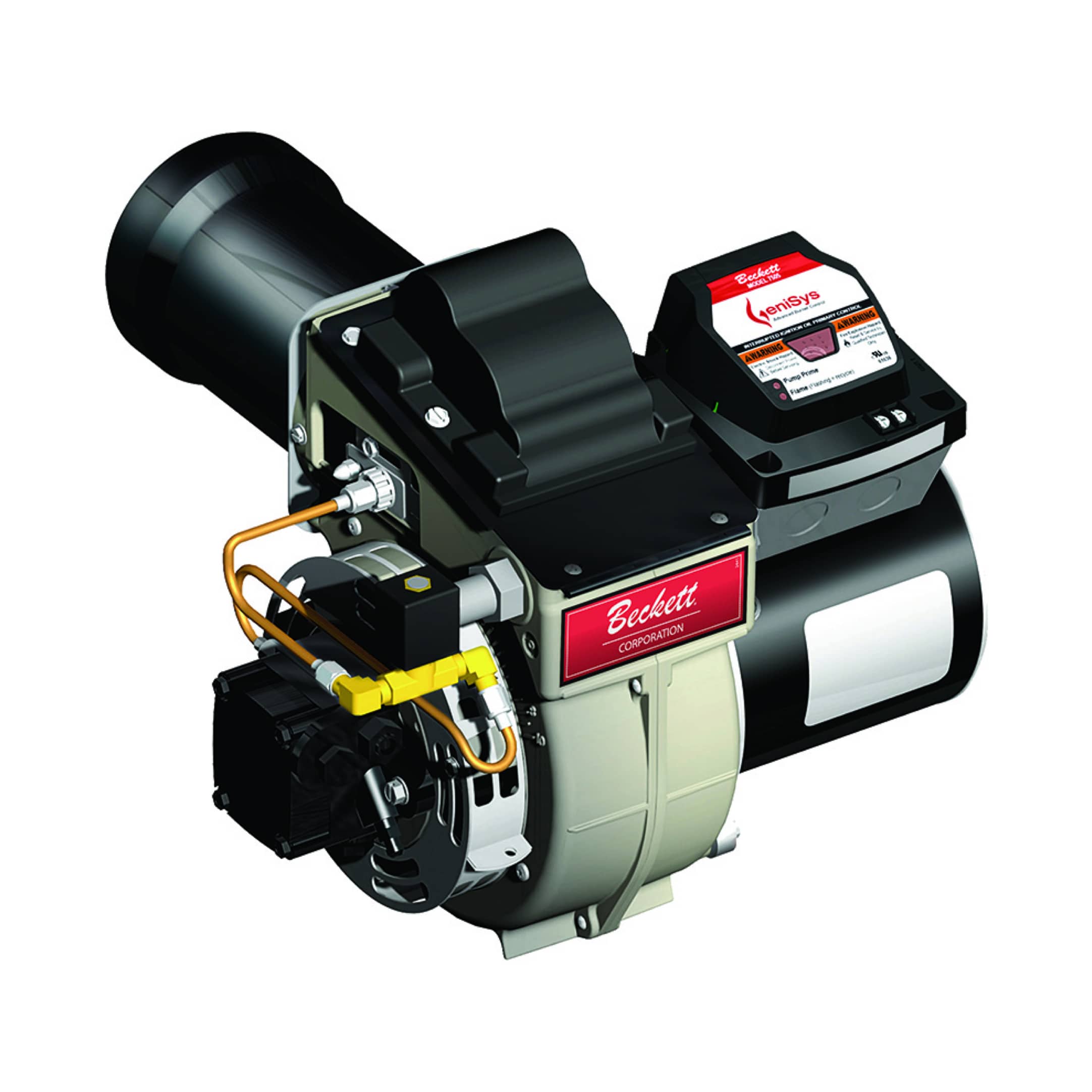

The CF800 is a high-performance oil burner engineered for light commercial and industrial applications, combining proven combustion technology with advanced components to meet the demands of high-efficiency appliances. Its cast aluminum housing delivers both durability and quiet operation, while direct spark ignition and a 1/2 HP motor ensure reliable, consistent performance.
CF800 Specifications
| Specification | Detail |
|---|---|
| Operation | On/Off |
| Rate | 3.00 to 8.00 GPH |
| Fuels | No. 1 or No. 2 heating oil (ASTM D396); ASTM D396 for B6–B20 biodiesel blends |
| Motor | 1/3 HP, 3450 RPM, 120/60 Hz Standard, 4.8A @ 120 VAC |
| Ignition Trans. | 120V / 14,000V |
| Housing | Cast aluminum |
| Fuel Unit | 100 to 200 psig |
| Oil Nozzle | 45° to 70° Solid |
Cross-References
| Category | Part Number | Description |
|---|---|---|
| Burner Cross-Reference | Carlin 301CRD | — |
| Riello F20 | — | |
| Commercial Burner Motors | 21341U | Split Phase, 1/3 HP, 3450 RPM, 120 VAC |
| Commercial Burner Pumps | 21188U | Suntec B2YA-8916, 2-phase, 7 GPH @ 100 psi |
| 21369U | Suntec B2TA-8248, 2-phase, 8 GPH @ 100 psi | |
| 51871U | NYC Oil / DAR – B2TA-8248/DAR Mounted, single phase, 8 GPH @ 100 psi | |
| Transformers & Igniters | 51824U | Igniter with Beckett ‘S’ Base |
| 51840U | Igniter with Carlin 200 Base |
